hot sell off-line SD card controller support ucs1903 sm16716 IC WS2801 WS2811 LDP6803 WS2812B pixels controller

FOB Reference Price:Get Latest Price
$125.00 - $135.00 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
CP, CP
Model Number:
T-8000A
Type:
led pixel controller
Max. Load Power:
5V<90W, 12V<216W, 24V <432W
Voltage:
AC90-265V
Key word:
pixels controller
Product Name:
ucs1903 sm16716 IC WS2801 WS2811 LDP6803 WS2812B pixels controller
Warranty:
2 years
Size:
L200mm*W170mm*H50mm
Application:
Control Lights
working wattage:
2w
Output Voltage:
5v-24v
Input Voltage:
AC110V/220V
Working Temperature:
-20~60
Supply Ability
Supply Ability:
1000 Piece/Pieces per Quarter
Packaging & Delivery
Packaging Details
accept client requirment
Port
shenzhen
Lead Time :
3-5 days after payment

hot sell  off-line SD card controller support ucs1903  sm16716 IC WS2801 WS2811 LDP6803 WS2812B pixels controller

Product Description

 This is a off-line SD card pixel LED controller, there are 8 ports, and MAX 1024 pixel for each port,
makes it can drive 8×1024=8192 pixels. You can make programs via software of ledEdit2014, then copy programs into the SD card, 1pcs of SD card support MAX 16 kinds of programs



Description:
Memory card:

Type: SD card (suggest using high-speed SD card)

Capacity: 128MB—2GB

Format: FAT

Store file Format: *.led


Physical parameters:
Working temperature :-30℃—85℃
Working voltage:DC5V
Working power:3W
Size:L200mm×W170mm×H50mm
Weight:1.5KG
Signal port:3pin connect port
T-8000A System features
1.32-65536 Gray,Support software Gamma correction.
2.Support point, line, surface, rules and special-shaped handle.
3.Single-port output,can support 2048 pixels.
4.Multiple controllers can be cascaded together and work synchronous,
play back content stored in the SD card.
5.Compatible with single line or double line chips.
2. NOTE:



A. When T-8000A controller control less than 512 lamps the frame rate can reach 30fps. When T-8000A controls more than 512 lamps and less than 1024 lamps the frame rate will slow down automatically.

B. In the 2012 production version of the T-8000A to add a Chinese flag on the surface, you must use the new software.

C. Before copy files to SD card ,The SD card must be formatted as FAT format.
D.The SD card in controller can not be hot-swappable, plug the SD card every time, you must first disconnect the power supply
File saving:

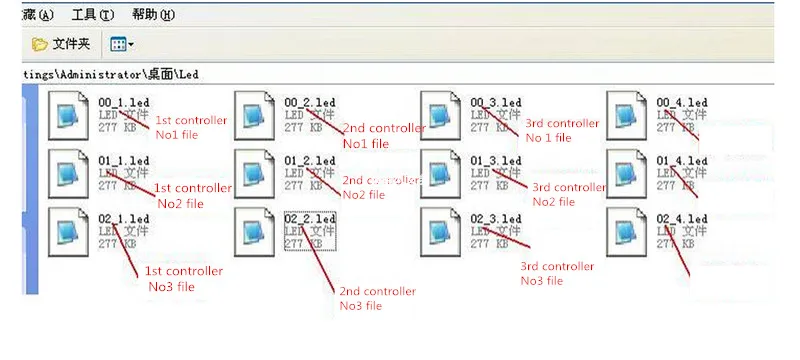

Rules for naming files(Use of multiple controllers at the same time):
The name of the file on the first controller
“00_1.led” ---------the first effect file
“01_1.led” ---------the second effect file
“02_1.led” ---------the third effect file
……
“15_1.led” ---------the fifteenth effect file
The name of the file on the second controller:
 “00_1.led” ---------the first effect file
“01_1.led” ---------the second effect file
“02_1.led” ---------the third effect file
  ……
“15_1.led” ---------the fifteenth effect file

IC Supported

IC supported

Software code&
Controller type
Pixel /(MAX)NOTE
LPD6803, D705,1101, 6909, 6912T-8000-6803819232 grade gray level
LPD8806, LPD8809T-8000-88064096/8192
TM1803, TM1804, TM1809, TM1812T-8000-TM4096/8192TM1804&TM1809
Divided into high speed and low speed
TM1903, TM1904,  TM1909, TM1912T-8000-TM194096/8192
UCS6909, UCS6912, UCS7009, UCS5903T-8000-UCS328192
UCS1903, UCS1909, UCS1912T-8000-UCS2564096/8192Divided into high speed and low speed
UCS3903T-8000-UCS10244096/8192
DMX512T-8000-DMX1360/4096Compatible with standard DMX512
WS2801, WS2803T-8000-WS4096/8192
WS2811T-8000-WS28114096/8192Divided into high speed and low speed
DS189T-8000-DS1894096/8192
TLS3001, TLS3002, TLS3008T-8000-TLS4096/8192
P9813T-8000-P98134096/8192
SM16715T-8000-SM167154096/8192Divided into high speed and low speed
SM16716T-8000-SM167164096/8192
BS0901, BS0902 T-8000-09014096/8192
BS0815T-8000-08154096/8192





3. The meaning of flag :

Button Meaning
SET Save your adjust
MODE



Switch effect file
SPEED+Turn up speed Press the speed adjustment button the file will in turn play.
SPEED-Turn down





DC 5VDC 5V
POWER Power light
ERRORError indicator
SD CARDSD card slot
CLK Clock line
DATData line
GNDGround wire



NOTE:

For the TTL(SPI) signal, the controller signal ground must connect to the LED ground wire directly.



  Mode of connection

NOTE:

1: Controller 8 port output, when each port with the number of lights is 512 pieces , the frame rate is 30 frames / sec, when more than 512, the frame rate decreases with the increase in lamp beads.

2: Controller cascade synchronization using the optical isolation signal synchronization, the farthest distance between the two controllers is 200 meters

Application





Related Products





Why Choose Us



Company Information



FAQ



 Question 1:After power,the T-8000A ERROR indicator has been flashing without display output



answer:The ERROR indicator has been flashing means the controller did not read the card correctly, possible problems:

     1. SD card is empty, with no effect file.

     2.The effect file in the SD card and the controller model are not match, please choose correct controller model in LedEdit and then re-create the effect file *led.

     3.SD card did not format to FAT before copy effect files.

     4. Please check the supply power voltage, the controller can be individually powered to exclude power reasons

5Changing the SD card and then test to exclude the possibility of a bad SD card



Question 2: The controller is powered on, the indicator is normal, but the lamps have no effect change

Answer: The reasons for this are as follows:

1 Check if the lamp′s signal line and the controller connected correctly

2  If the TTL signal is received, the lamp and the controller must be common ground, that means connect the lamp′s and the controller′s ground wire together

3  Check if the model chose during making display files on the SD card match the chips used in the lighting



Question 3:Controller and light connected, after. Lamps flicker. Controller indicator to normal.

Answer:

 1 The ground wire is not connected between the controller and lighting.

 2 The file in SD card is bad, Chip model does not match with the actual.

 3 Insufficient power supply.



Question4: The SD card can not be formatted.

Answer:

1 First make sure the SD card on the side of the protection switch is already open.

2 SD card reader is broken

3 Do all of this can’t deal with the question. Change the SD card tests again.



 More question about controller , please contact me no hesitate .
